visualization2-kelp-diagrams

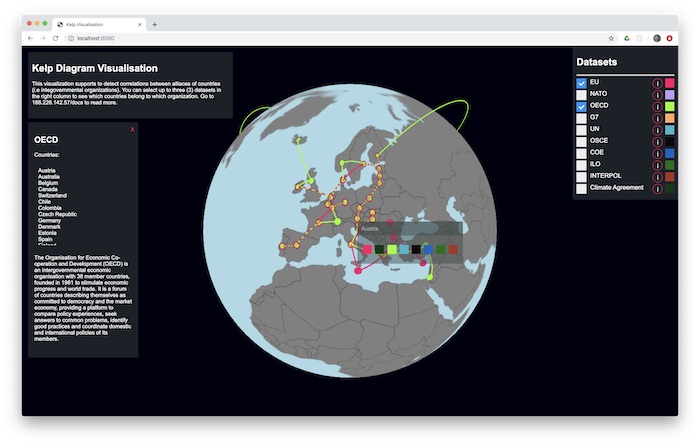

This project is an proof of concept visualisation of countries belonging in different intergovernmental organizations using Threejs and D3.js. Furthermore, this project serves as an implementation of Kelp Diagrams visualisation, presented in the paper by Dinkla et. al. which can be found. here.

Usage

Start the project locally by running

npm install && npm start

Algorithm

The algorithm is implemented in three main steps:

1. Allocation of the element space
   • Creating a voronoi diagram with country coordinates (or locations in the canvas) as the datapoints
2. Allocation of additional link space: 2D or 3D
   • In 2D we calculate the minimal cost links between elements like so:
     • Find best-to-place link based on:
       • shortest path (dijkstra)
       • angular bend
       • intersections
   • and in 3D, such that overlapping doesn't happen
3. Generation of the visualisation
   • map the diagram in to the world texture
   • project the texture over a 3D sphere.

Application structure

directories

assets -directory contains all the necessary assets
src -directory contains the application source code

files

• world.ts: Add world map and borders in to the 3d sphere
• dijkstra.ts: implementation of the dijkstra algorithm
• linking.ts: Class which creates the links between datapoints in a set
• voronoi.ts: Class for creating the voronoi diagram and adding it to the canvas
• data.ts: Data class containing the data to be visualised
• index.ts: Starting point, initialization of the application
• data.json: Data for this project
• generate_dataset.ipynb: Jupyter Notebook file, which scrapes all the data from various wikipedia pages and combines them into the final data.json file

Data

The data is parsed with the generate_dataset.ipynb using python from wikipedia pages of the different intergovernmen organisations. Snapshot of the first 10 rows of the data, including the column names:

The function that scrapes the given wikipedia page and a list from it looks like this:

def getWikipediaList(url, table_index):

    page = requests.get(url)
    soup = bs4.BeautifulSoup(page.content, 'html.parser')
    tables = soup.find_all('table')
    table = tables[table_index]
    table_headers = []
    row_headers = []
    for tx in table.find_all('th'):
        if tx.has_attr('scope'):
            if tx['scope'] == 'col':
                table_headers.append(re.sub('\[\d+\]','',tx.text.replace('\n', '')))
            if tx['scope'] == 'row':
                row_headers.append(re.sub('\[\d+\]','',tx.text.replace('\n', '')))
        else:
            table_headers.append(re.sub('\[\d+\]','',tx.text.replace('\n', '')))
    result = pd.DataFrame([[td.text for td in row.find_all('td')] for row in table.tbody.find_all('tr')])
    print(row_headers)
    result.columns = table_headers
    result.replace(r'\n', '', regex = True, inplace = True)
    result.replace(r'[^\x00-\x7F]+', '', regex = True, inplace = True)
    result.drop([0], inplace= True)
    if(len(row_headers)>0):
        result = result.shift(periods=1, axis=1)

        result = result[0:len(result)-1]
        result['Name'] = row_headers
    return result

And this is how the function to retrieve each dataset as dataframe:

uncfcc_countries = getWikipediaList(url = 'https://en.wikipedia.org/wiki/List_of_parties_to_the_United_Nations_Framework_Convention_on_Climate_Change', table_index=0)
eu_countries = getWikipediaList('https://en.wikipedia.org/wiki/Member_state_of_the_European_Union', table_index=1)
nato_countries = getWikipediaList('https://en.wikipedia.org/wiki/Member_states_of_NATO', 0)
oecd_countries = getWikipediaList('https://en.wikipedia.org/wiki/OECD', 11)
g7_countries = getWikipediaList('https://en.wikipedia.org/wiki/Group_of_Seven', 4)
un_countries = getWikipediaList('https://en.wikipedia.org/wiki/Member_states_of_the_United_Nations', 1)
osce_countries = getWikipediaList('https://en.wikipedia.org/wiki/Organization_for_Security_and_Co-operation_in_Europe', 1)
coe_countries = getWikipediaList('https://en.wikipedia.org/wiki/Member_states_of_the_Council_of_Europe', 0)
# eu standardizationz
eu_countries = eu_countries.apply(lambda x: x.str.strip() if x.dtype == "object" else x)
eu_countries = eu_countries.apply(lambda x: x.str.replace("\[.\]", "") if x.dtype == "object" else x)
#un standardization
un_countries = un_countries.apply(lambda x: x.str.strip() if x.dtype == "object" else x)
un_countries = un_countries.apply(lambda x: x.str.replace("\[.*\]", "") if x.dtype == "object" else x)
#osce standardization
germany_index = osce_countries[osce_countries['State'] == 'Germany- as West Germany- as East Germany'].index[0]
north_macedonia = osce_countries[osce_countries['State'] == 'North Macedonia[Note 3][9]'].index[0]
russia_index = osce_countries[osce_countries['State'] == 'Russia (as Soviet Union)'].index[0]
serbia_index = osce_countries[osce_countries['State'] == 'Serbia (as Yugoslavia)'].index[0]

osce_countries.at[germany_index, 'State'] = 'Germany'
osce_countries.at[north_macedonia, 'State'] = 'Macedonia [FYROM]'
osce_countries.at[russia_index, 'State'] = 'Russia'
osce_countries.at[serbia_index, 'State'] = 'Serbia'

Combine them into one coordinates dataframe, which is the final form of the data to be used by the visualisation:

coordinates = pd.read_csv('assets/world_country_and_usa_states_latitude_and_longitude_values.csv')
coordinates = coordinates[['country_code', 'latitude', 'longitude', 'country']]
coordinates['in_eu'] = np.where(coordinates['country'].isin(eu_countries['Name'].values), True, False)
coordinates['in_uncfcc'] = np.where(coordinates['country'].isin(uncfcc_countries['State'].values), True, False)
coordinates['in_nato'] = np.where(coordinates['country'].isin(nato_countries['Member state'].values), True, False)
coordinates['in_oecd'] = np.where(coordinates['country'].isin(oecd_countries['Country'].values), True, False)
coordinates['in_g7'] = np.where(coordinates['country'].isin(g7_countries['Member'].values), True, False)
coordinates['in_un'] = np.where(coordinates['country'].isin(un_countries['Member state'].values), True, False)
coordinates['in_osce'] = np.where(coordinates['country'].isin(osce_countries['State'].values), True, False)
coordinates['in_coe'] = np.where(coordinates['country'].isin(coe_countries['State'].values), True, False)
coordinates['in_ilo'] = np.where(coordinates['country'].isin(un_countries['Member state'].values), True, False)
coordinates['in_interpol'] = np.where(coordinates['country'].isin(interpol_countries), True, False)
not_in_ilo = ['Andorra', 'Bhutan', 'Liechtenstein', 'Micronesia', 'Monaco', 'Nauru', 'North Korea']

for country in not_in_ilo:
    coordinates.loc[coordinates['country'] == country, 'in_ilo'] = False

coordinates

Links

Running version can be found (until the end of June 2021) here

Link to the code documentation can be found here

Source code can be found from github
